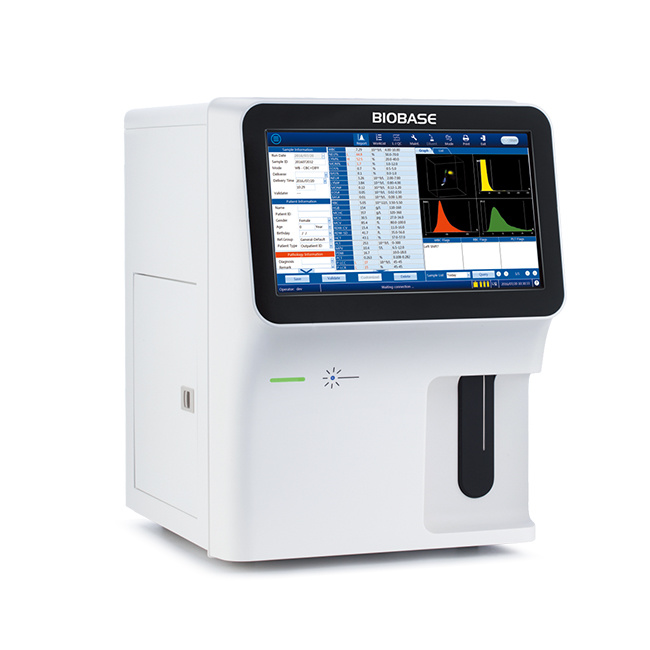

5 Part Auto Hematology Analyzer
1. Throughput: 60T/H.
2. 14 inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5 part differentiation of WBC
5. Large storage capacity: 100,000 results(including histogram, scatthergram, patientInformation)
Dimension: 1 x 1 x 1
Dimension: 320mm x 320mm x 290mm
Description
Parameters:
| MODEL | MC6310 | |||
| Throughput | 60 tests/hour | |||
| Assay items | 5 parts, 29 parameters, 3 histograms | |||
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide free reagent for HGB test | |||
| Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | |||
| Parameters |
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CW, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%,EOS%,BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 Research parameters: ALY%, ALY#, IG%, IG# |
|||
| Performance |
Item | Linearity | Carry Over | CV |
| WBV | 0~300×10⁹L | ≤ 0.5% | ≤ 2.0% | |
| RBC | 0~8.00×10¹²/L | ≤ 0.5% | ≤ 1.5% | |
| HGB | 0~250g/L | ≤ 0.5% | ≤ 1.5% | |
| PLT | 0~3000×10⁹/L | ≤ 1.0% | ≤ 4.0% | |
| Sample Volume | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | |||
| Storage | 100,000 results including histogram, scattergram and patient information | |||
| Interface | 4 USB ports, 1LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||
| Power Supply | AC220V±10% 50/60Hz; 110V±10% 60Hz; 400VA | |||
| Package Size | 670*590*790mm (W*D*H) | |||
| Gross Weight | 53kg | |||
| Reagent Package Size | 320*320*290mm (W*D*H) | |||
| Reagent Gross Weight | 22kg | |||
